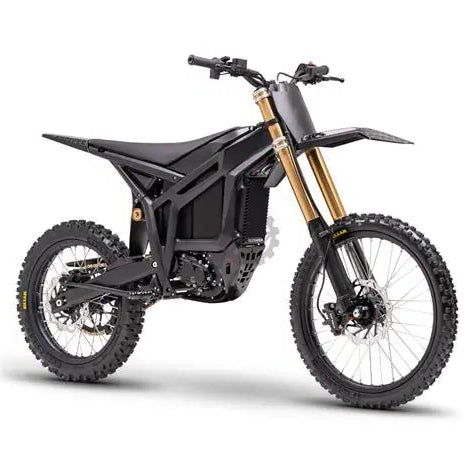

TALARIA KOMODO

FOR OFF ROAD USE ONLY

• Peak Power: 32 kW (approx. 43 horsepower)
• Rated Motor Power: 8.6 kW
• Peak Torque: 754 Nm (Wheel torque) / >90 Nm (Motor torque)
• Top Speed: ~65–66 mph (105 km/h)
• Acceleration: 0–30 mph in ~2.0 seconds / 0–60 mph in ~4.5 seconds
• Riding Modes: 4 Modes — Eco, Sport, Hyper, and Reverse

• Battery Pack: 97.2V Nominal / 96V Platform, 45 Ah (approx. 4.3 kWh)
• Battery Cells: Samsung 50S 21700 / LG H51
• Estimated Range: Up to 71.5 miles (115 km) when cruising at a steady 28 mph (45 km/h)
• Charging: Supports 40A fast charging (10% to 80% in about 1 hour)
• Waterproofing: IP67 battery protection level
• Regenerative Braking: 4-level adjustable system with dedicated handlebar control
• Display: High-density TFT display (320 DPI) with a 167° viewing angle

• Frame: Lightweight, high-strength forged aluminum alloy chassis
• Front Suspension: Dual-chamber adjustable air forks (850mm length, 43mm stanchions, 250mm travel)
• Rear Suspension: Performance air shock (350mm length, 90mm stroke, 500–720 lbs adjustable spring)
• Brakes: Upgraded heavy-duty hydraulic disc brakes utilizing DOT fluid
• Front Wheel/Tire: 21" rim (1.6x21) with 70/100-21 CST or 80/100-21 Maxxis tire
• Rear Wheel/Tire: 18" rim (2.15x18) with 90/100-18 CST or 110/90-18 Maxxis tire
• Drivetrain: Gearbox primary transmission into a heavy-duty 520 chain drive

• Overall Size: 86 x 32 x 48 inches (2,200 x 810 x 1,220 mm)
• Seat Height: 35.8 inches (910 mm)
• Ground Clearance: 12.4 inches (315 mm)
• Wheelbase: 54.3 inches (1,380 mm)
• Net Weight: 216 lbs (98 kg) including the 58 lb (24.5 kg) battery
• Maximum Load: 353 lbs (160 kg)
