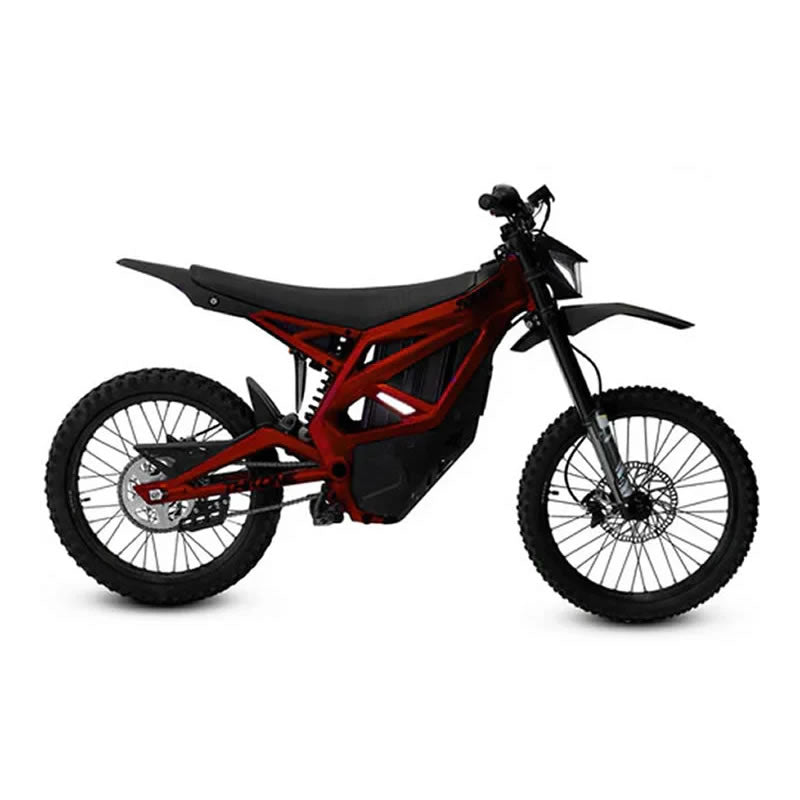

SRPNT X3 2025-RED

FOR OFF ROAD USE ONLY

MOTOR
Motor Type:    PMSM
Mounting Position:    Mid
Weight / Motor External Diameter:    9.55kg / 155mm
Motor Axial Length:    130mm
Peak Efficiency:    98%
Cooling Method:    Air-Cooled
CONTROLLER
Controller Type:    FOC
Dimensions:    160mm x 142mm x 79mm
Peak Efficiency:    98.50%
Power Modes:    Eco, High, and Sport
MOTOR POWER SYSTEM
Rated Voltage:    72V (DC)
Rated Torque / Peak Torque:    95115Nm
Motor Shaft Output Torque @ 1000RPM:    510Nm
Rated Rotation Speed:    5400rpm
Peak Efficiency:    97%
Range of Efficiency (?80):    3Nm - 45Nm
TRANSMISSION
Gear Ratio:    13:51
Transmission:    Motorcycle Chain & 428 Drive Chain
Model:    German Continental Brand, 8M CXA
ELECTRICAL COMPONENTS
Horn:    CQC
Battery:    72V 40AH Lithium Battery with 176 LG Cells
Battery Life Time:    500 Cycles
Battery Charge Level:    Integrated Battery LCD Display
Charger:    9A
Charging Time:    3.5 Hours
USB Connection:    Type C
Speedometer:    TFT
LED Headlight & Rear Light:    Yes
FRAME DETAILS
Chassis - Swing Arm Material:    No.6061 T4&T6 Aluminum
Chassis Construction Method:    Forged by 3000 Tons of Pressure
Chassis Surface & Color Processing:    Baked Paint
Front Suspension:    Inverted Suspension Fork with 200mm Travel
Rear Shock Absorber:    KKE Suspension Link System
Wheel Type & Size:    Front/Rear :1.4-19 , 1.6-19 Alloy Hubs
DIMENSIONS
Ground Clearance:    270mm
Wheelbase:     1250mm
Seat Height:    85cm
Vehicle Dimensions:    1880mmX805x1130mm
DRIVE
Top Speed:     90km/h
Net Weight    73kg
Rear Sprocket    51T
Side Stand    Yes with Kill Switch
Battery Usage     600 Uses
Carry Capacity     320lb
