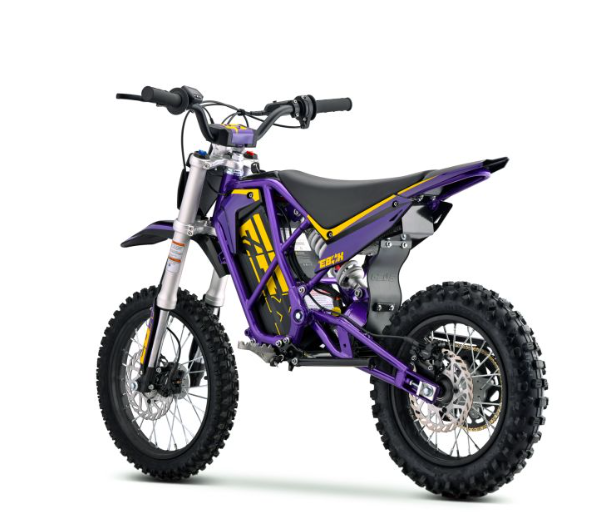

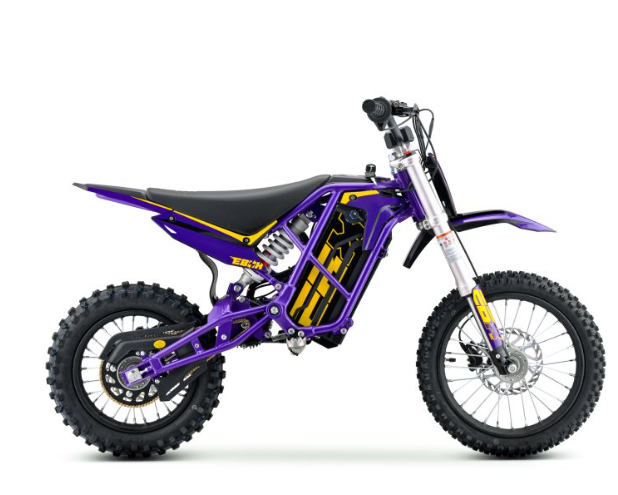

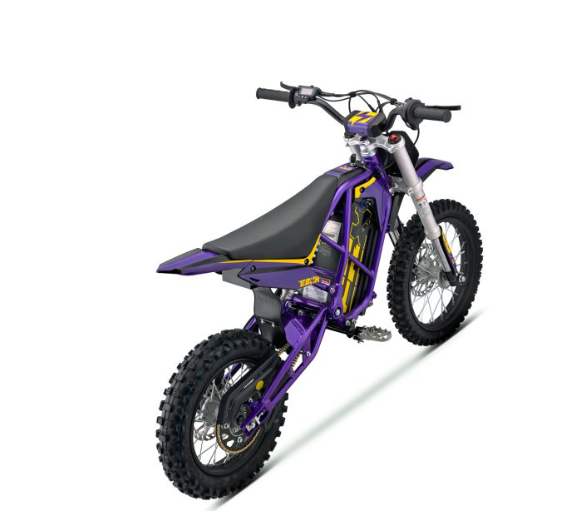

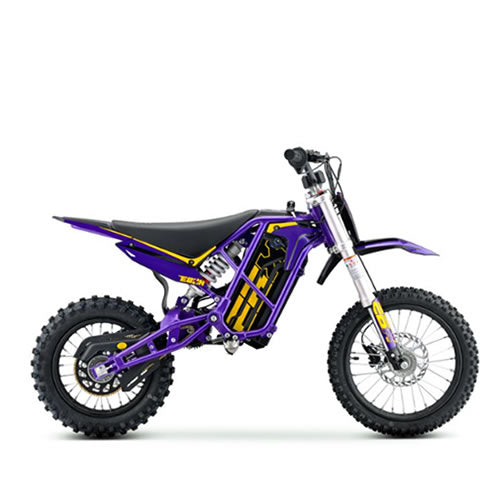

EBOX V3 60R Purple/Gold

FOR OFF ROAD USE ONLY

SPECS

Frame type    V3 Double Cradle
Front wheel size    14"
Rear wheel size    12"
Fork    150mm travel USD
Rear Suspension    Progressive mono shock 150mm travel
Bar Risers    Alloy Cast 36mm rise Ø22.2
Front brake    Hyraulic Disc (Right lever) e-moto brakes
Front disc    180mm rotor, 4 bolt
Rear brake    Hyraulic Disc (Left lever) e-moto brakes
Rear disc    180mm rotor, 4 bolt
Front tyre    Upgraded 60/100-14 Dirt
Rear tyre    Upgraded 80/100-12 Dirt
Chain    219H 120L
Gearing    Front 10T, Rear 70T
Max load    187
Handlebar    6061 T6 EBOX High Rise 1pc
Seat    EBOX fat seat
Motor    60V EBX PMSM motor with temp feedback and encoder
Rated Power    4.5KW
Peak power    5.2KW (6.7hp)
Max RPM    8,500
Battery    New 60v 26 Ah battery with BMS 18,600 Cells potted in steel case with QS8 connector and air breaker switch
Controller    80 Amp Fardriver controller
Throttle    Full twist
Display    TFT odometer display with 3 speed modes and fault code analysis software
Connectors    Automotive connectors with sealed wiring harness
Charger    AC 100-240V, Output: 67.2V, 5A

TECH
Charge time    4-5 hours
Range    25-28 miles (40-45Km)
Top speed    53mph (85Km/h)
External adjustability    3 riding modes
Frame construction    V3 wide frame (190mm) large capacity battery, race inspired revised geometry. Increased fork travel, increased pre-load and heavier oil. Standard Footpeg.
Waterproof    IP54
Wheelbase    980mm
Seat height    650mm
Bike Weight    50.8kg (1l2lbs)
Warranty ***   EBX 1 year/1000 miles (whichever comes first) powertrain warranty. 6 month parts warranty. See T&C's from manufacturer for more information.
