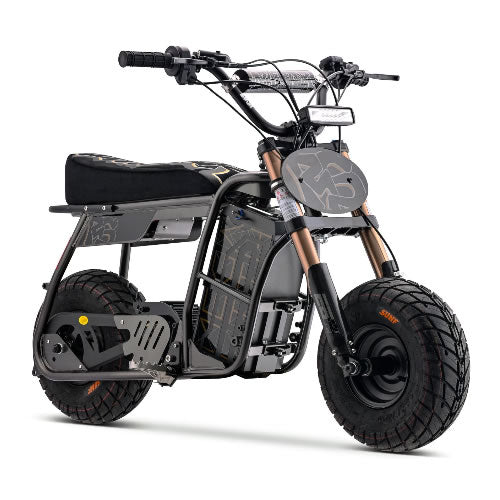

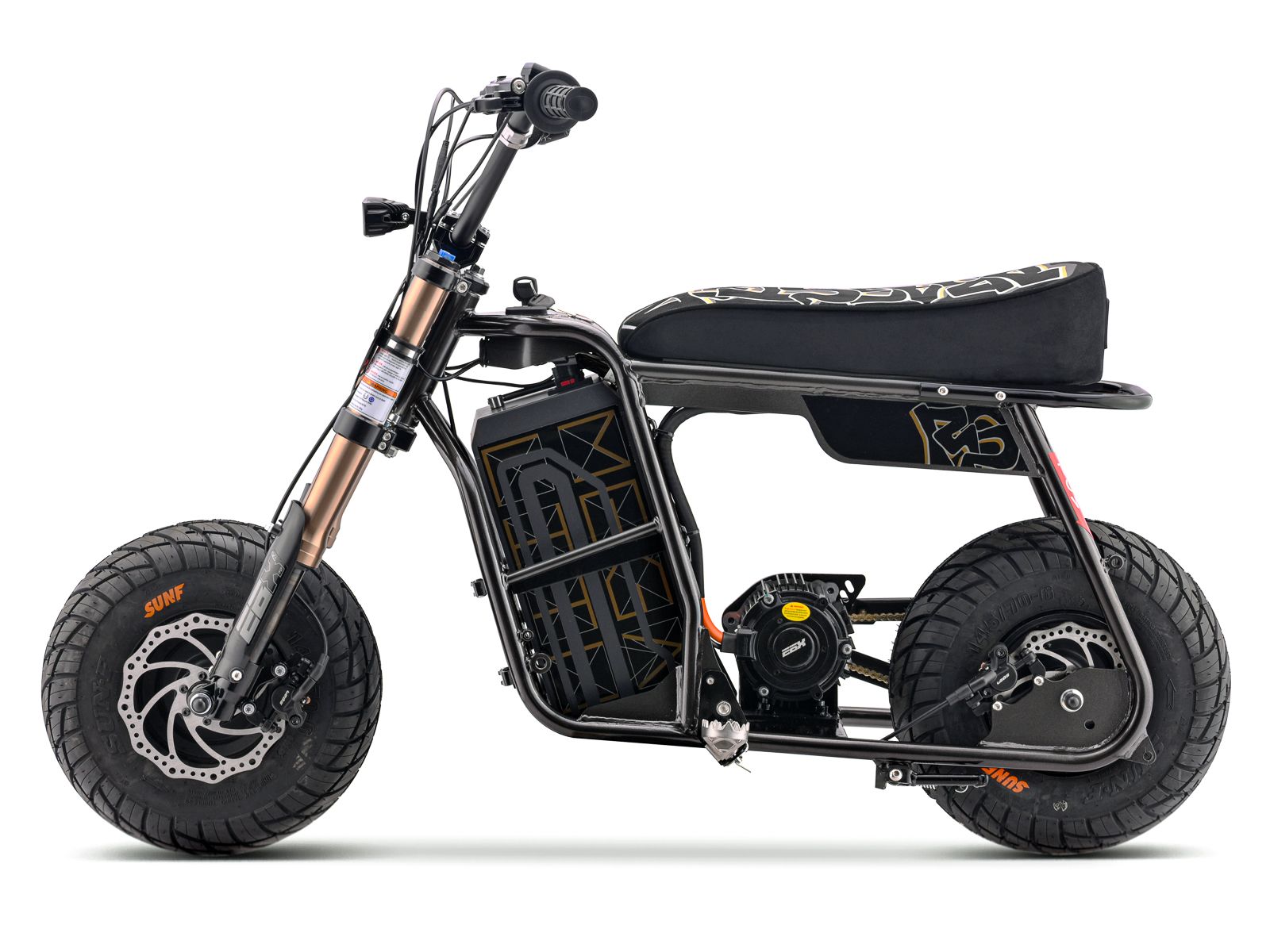

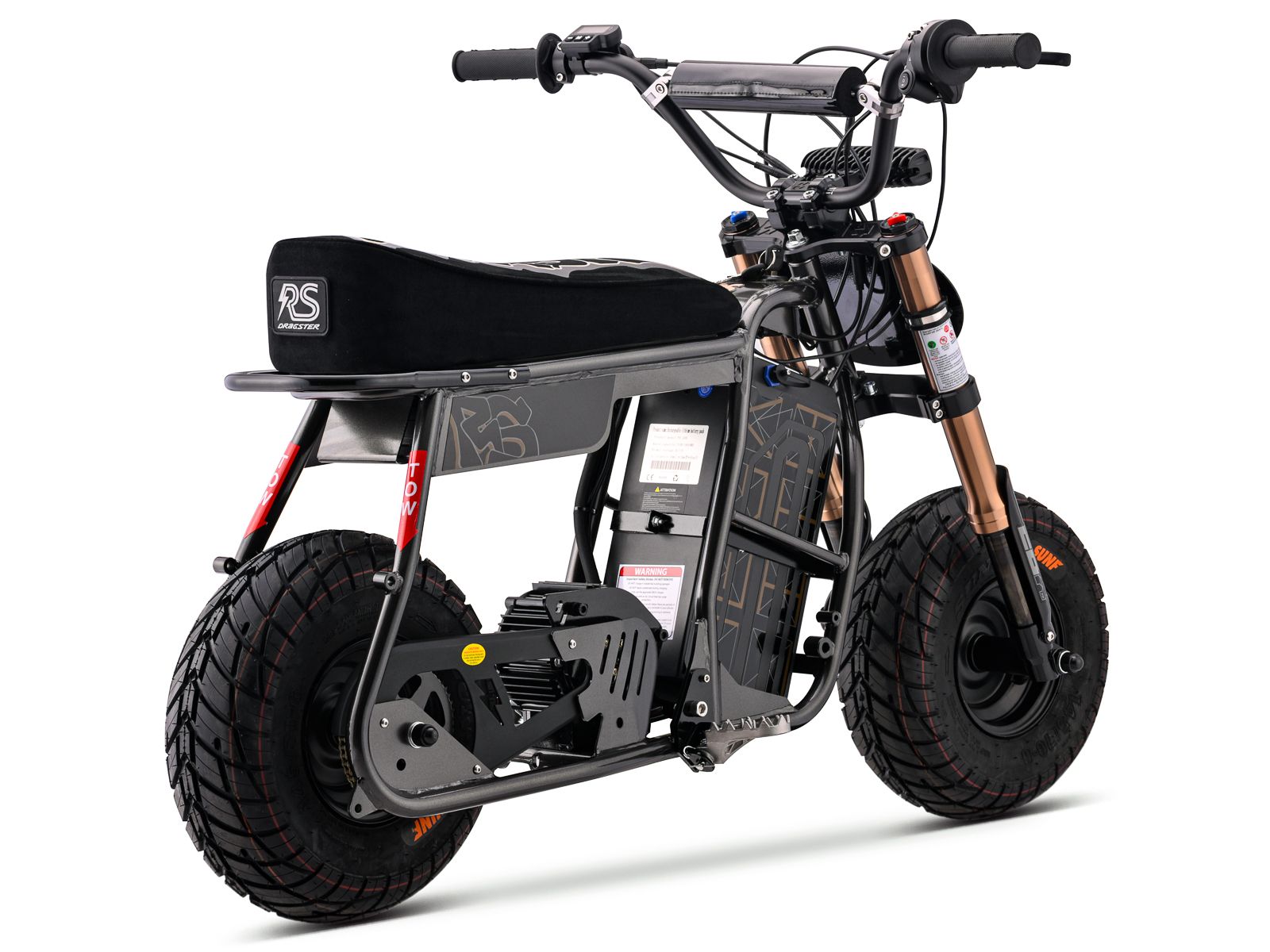

EBOX DRAGSTER RS 72V BLACK
EBOX DRAGSTER RS 72V BLACK
Regular price
$2,499.00 USD
Regular price
Sale price
$2,499.00 USD
Unit price
/
per
Shipping calculated at checkout.
Assembly charge not included in price.
FOR OFF ROAD USE ONLY
| Frame type | Full duplex |
|---|---|
| Fork | 100mm Travel Inverted forks with bronze anodised fork legsand black hardened stanchions |
| Fork Clamps | Billet 6061 T6 CNC machined triple clamps |
| Bar Risers | 6061 T6 CNC machined 35mm rise Ø22.2 |
| Front wheel size | 6" |
| Rear wheel size | 6" |
| Front brake | Hyraulic Disc (Right lever) e-moto brakes |
| Front disc | Wavey rotor 180mm, 6 bolt 48mm BCD |
| Rear brake | Hyraulic Disc (Left lever) e-moto brakes |
| Rear disc | Wavey rotor 160mm, 6 bolt 48mm BCD |
| Front tyre | 145/70-6 SUNF fast SM tyres |
| Rear tyre | 145/70-6 SUNF fast SM tyres |
| Chain | Uprated performance gold 219H 108L |
| Gearing | Front 10T, Rear 55T |
| Max load | 100kg |
| Handlebar | 6061 T6 29.5" x 7", with 3 piece crossbar and bar pad |
| Seat | Luxurious suede RS wedge seat |
| Motor | 72V EBX PMSM motor with temp feedback and encoder |
| Rated Power | 5.4KW |
| Peak power | 6.3KW (8.5hp) |
| Max RPM | 9,000 |
| Battery | New 72v 25 Ah battery with BMS 21700 Cells potted in steel case with Qs8 connector and air breaker switch |
| Controller | 80 Amp fardriver controller |
| Throttle | SURRON style full twist |
| Display | TFT odometer display with 3 speed modes and fault code analysis software |
| Connectors | Automotive connectors with sealed wiring harness |
| Charger | AC 100-240V, Output: 84V, 6A |
| Light | LED headlight and switch |
