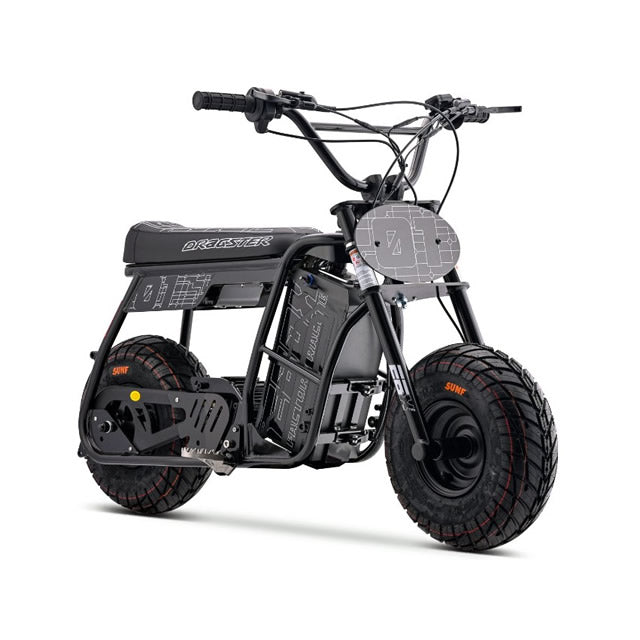

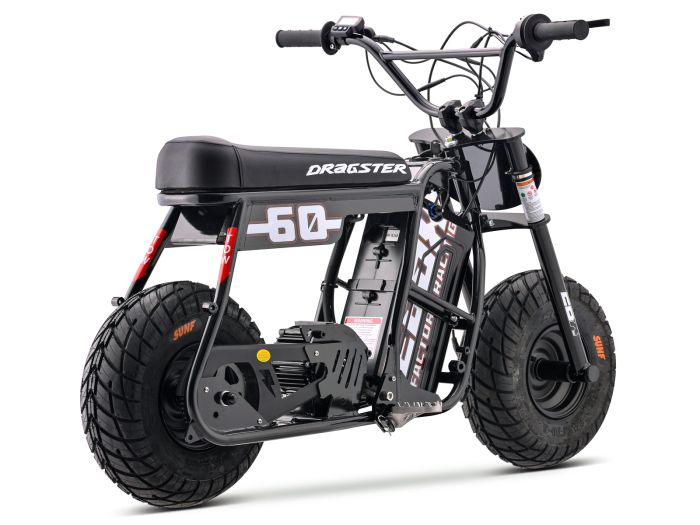

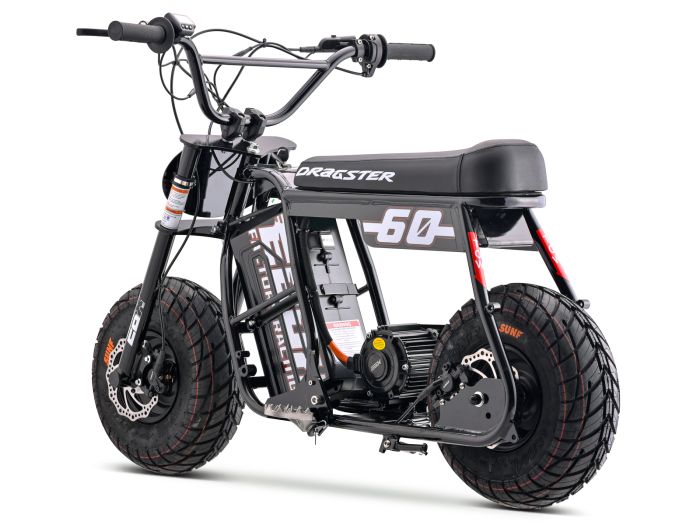

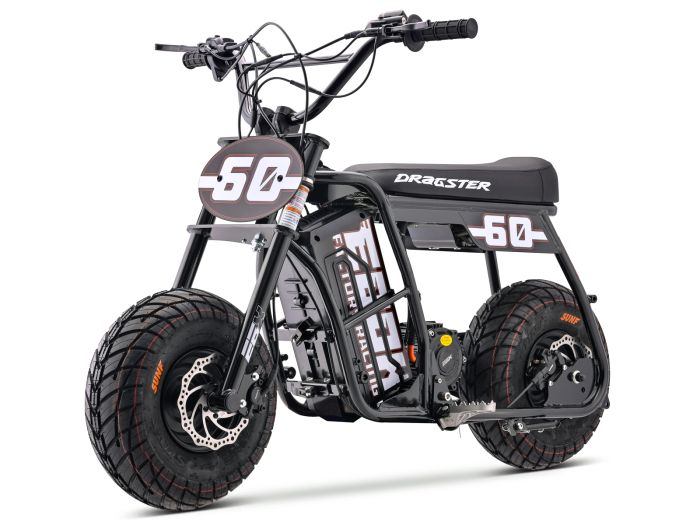

EBOX DRAGSTER EBX 60 R E-DIRT BIKE BLACK (USA)

FOR OFF ROAD USE ONLY

Wheelie bar not included with bike. Wheelie bar available.

SPECS
Frame type: Full duplex
Fork: Rigid High Tensile
Bar Risers: Cast alloy 36mm rise Ø22.2
Front wheel size: 6"
Rear wheel size: 6"
Front brake: Hyraulic Disc (Right lever) e-moto brakes
Front disc: Wavey rotor 160mm, 6 bolt 48mm BCD
Rear brake: Hyraulic Disc (Left lever) e-moto brakes
Rear disc: Wavey rotor 160mm, 6 bolt 48mm BCD
Front tyre: 145/70-6 SUNF fast SM tyres
Rear tyre: 145/70-6 SUNF fast SM tyres
Chain: 219H 108L
Gearing: Front 10T, Rear 55T
Max load: 100kg
Handlebar: High Tensile 2 Piece 29.5" x 7"
Seat: Dragster seat
Motor: 60V EBX PMSM motor with temp feedback and encoder
Rated Power: 4.5KW
Peak power: 5.2KW (6.7hp)
Max RPM: 8,500
Battery: New 60v 26 Ah battery with BMS 18,600 Cells potted in steel case with QS8 connector and air breaker switch
Controller: 80 Amp fardriver controller
Throttle: SURRON style full twist
Display: TFT odometer display with 3 speed modes and fault code analysis software
Connectors: Automotive connectors with sealed wiring harness
Charger: AC 100-240V, Output: 67.2V, 5A

TECH
Charge time: 4-5 hours
Range: 25-28 miles (40-45Km)
Top speed: 53mph (85Km/h)
External adjustability: 3 riding modes
Frame construction: High strength steel, removable motor plate, integrated chain tensioner, loop tail design, quick release battery system, 2-point foot peg position mounts, frame mounted stunt peg compatible.
Waterproof: IP54
Other: USB A + C charging port
Wheelbase: 882mm
Ground clearance: 120mm
Seat height: 585mm
Bar height: 810mm
Bike Weight: 47kg (103lbs)
Warranty: EBX 1 year/1000 miles (whichever comes first) powertrain warranty. 6 month parts warranty. See T&C's for more information
