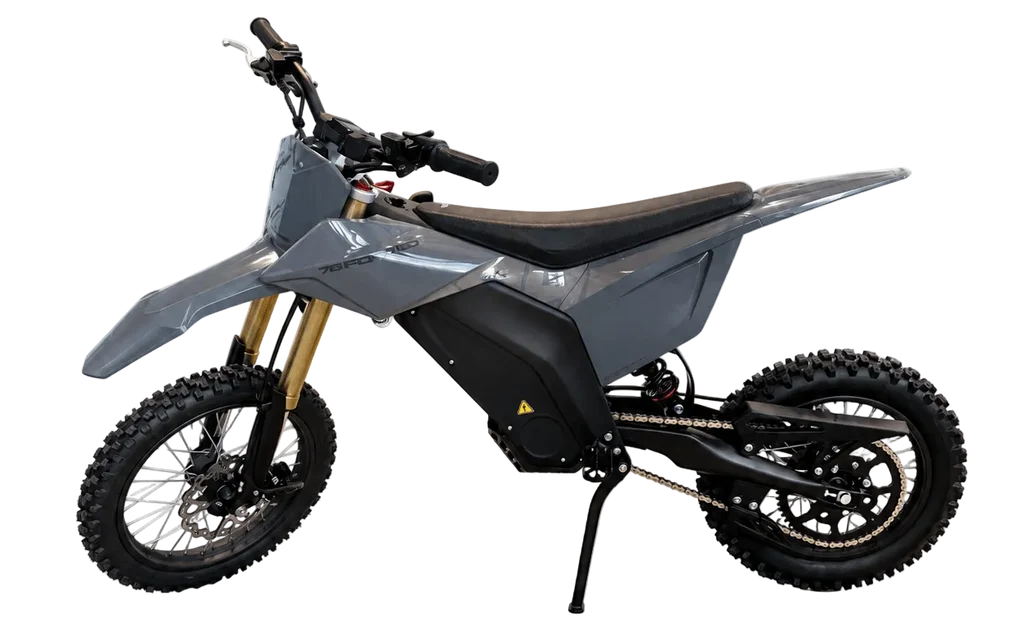

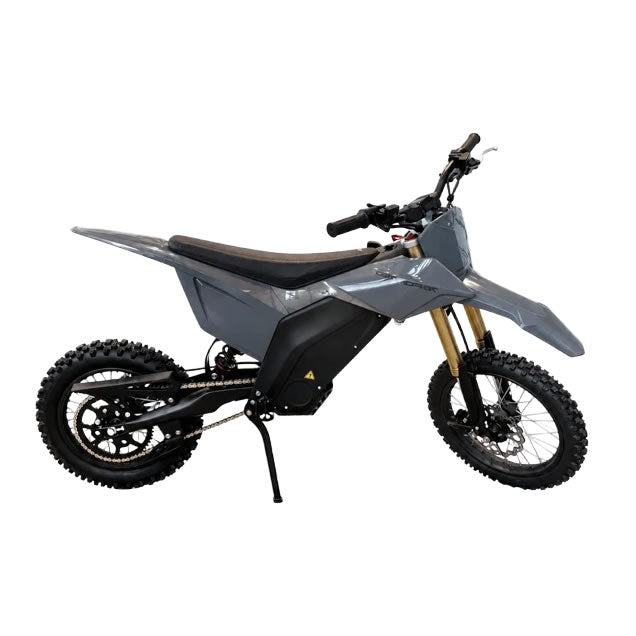

78 Forged Phase 1 Electric Dirt Bike Grey
78 Forged Phase 1 Electric Dirt Bike Grey
Assembly charge not included in price.
Power & Performance
Peak Power: 4.5kW
Nominal Power: 2.0kW
Torque: 35 Nm (motor shaft)
Top Speed 50 mph
Battery & Ride Time
Battery: 60V 20Ah Lithium-ion (Samsung 21700 cells)
Waterproof Rating: IP67
Range: Up to ~40 miles (low mode cruising) ~20 miles (full power riding)
Charger: 60V 5A
Brakes, Drivetrain & Wheels
Brakes: Front & rear hydraulic pit bike brakes
Rotor Size: 190mm discs
Chain: 420 chain
Gearing: 11T front / 53T rear
Front Tire: 60/100-14
Rear Tire: 80/100-12
Sizing
Seat Height: 28 inches
Wheelbase: 44.4 inches
Ground Clearance: 11 inches
Bike Weight: 119 lbs
Max Rider Weight: 170 lbs
Tech Features
Motor: 60V PMSM (Permanent Magnet Motor)
Controller: 80A vector controller (smooth throttle response)
Display: TFT color display
