3000W mid-drive power, 37 MPH top speed and 147 Nm torque with pro suspension—built for off-road.

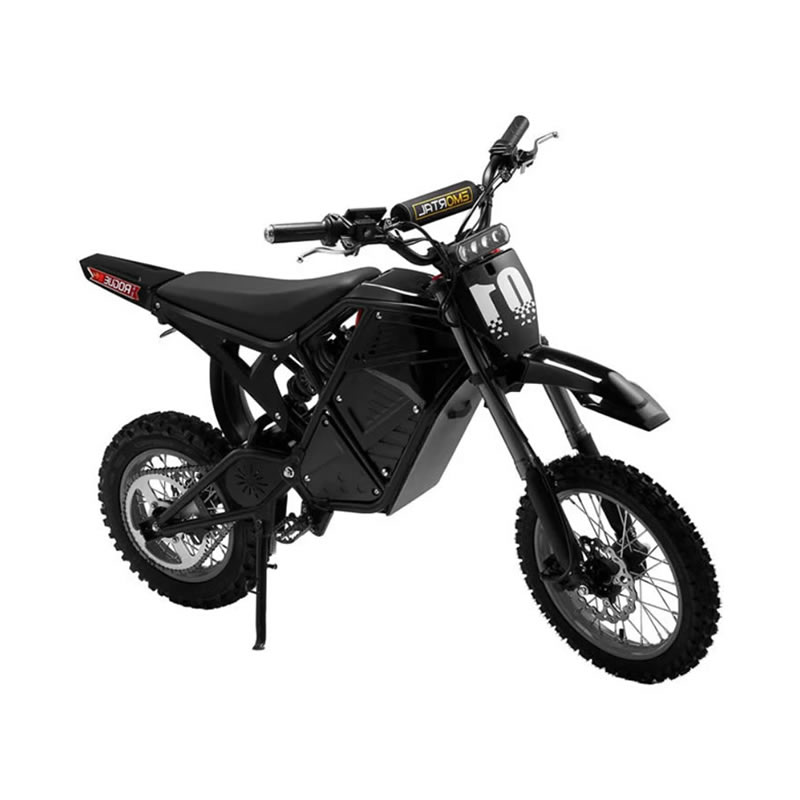

Model Rogue MX-01
Weight (include battery) N.W. 56 kg / G.W. 60 kg
Riding Requirements
Age 13–50
Max load 120 kg (265 lbs)
Power Peak 3000 W (rated 1500 W)
Top speed 60 km/h (37 mph)
Range (battery fully charged) 50–60 km (70 kg rider, ≤ 35 km/h)
Main Specification
Seat height 800 mm
Wheelbase 1100 mm
Overall height 1050 mm
Overall length 1590 mm
Minimum ground clearance 340 mm
Climbing ability 30°
N.W. 56 kg
G.W. 60 kg
Frame Steel
Front suspension Hydraulic fork, 95 mm travel
Rear suspension Adjustable hydraulic nitrogen shock absorber
Brake Hydraulic disc brake
Drivetrain Chain drive
Tires (Front/Rear) 14″ / 12″
Battery
Battery type Li-ion battery
Capacity 48 V 23 Ah
Charging input AC 110–240 V / 50–60 Hz / 2.5 A
Charging time ≈ 8 hours
Nominal voltage 48 V
Motor
Motor type Brushless motor
Motor rated power 1500 W
Motor peak power 3000 W
Temperature
Applicable temperature 32–86 °F (= 0–30 °C)
Recommended storage temperature Battery ~ 68 °F (= 20 °C)
